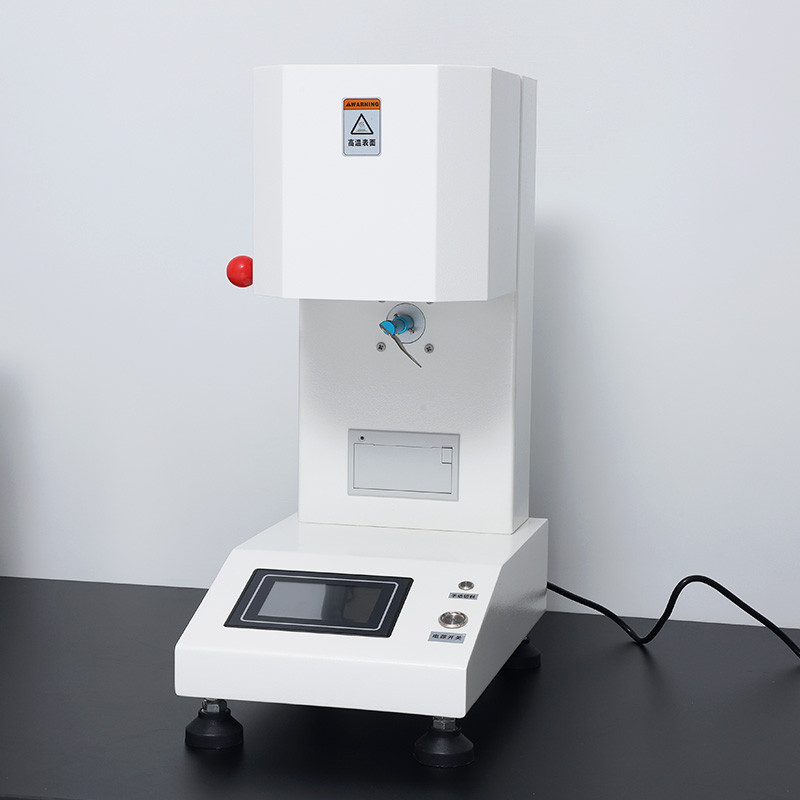

The melt flow rate meter (LCD display, fully automatic) is an instrument used to measure the flow properties of thermoplastic materials at high temperatures according to the best methods of GB3682-2000 and ISO 1133.
Squeezing and discharging part | Standard test load (8 levels in total) |
Discharge port diameter:Ø2.095±0.005mm | Temperature Range: Room temperature -400°C |
Discharge port Length:800±0.025mm | Constant temperature accuracy:±0.1°C |
Loading cylinder diameter:Ø9.550±0.025mm | Display resolution: 0.1°C |
Loading cylinder Length:152±0.1mm | Temperature recovery times: less than 4 minutes. |
Piston rod head diameter:9.475±0.015mm | Cutting frequency:1-99 times |
Piston rod head Length:6.350±0.100mm | Cutting time interval:10-600 seconds. |
Constant temperature time: can work continuously for tens of thousands of hours. | |
