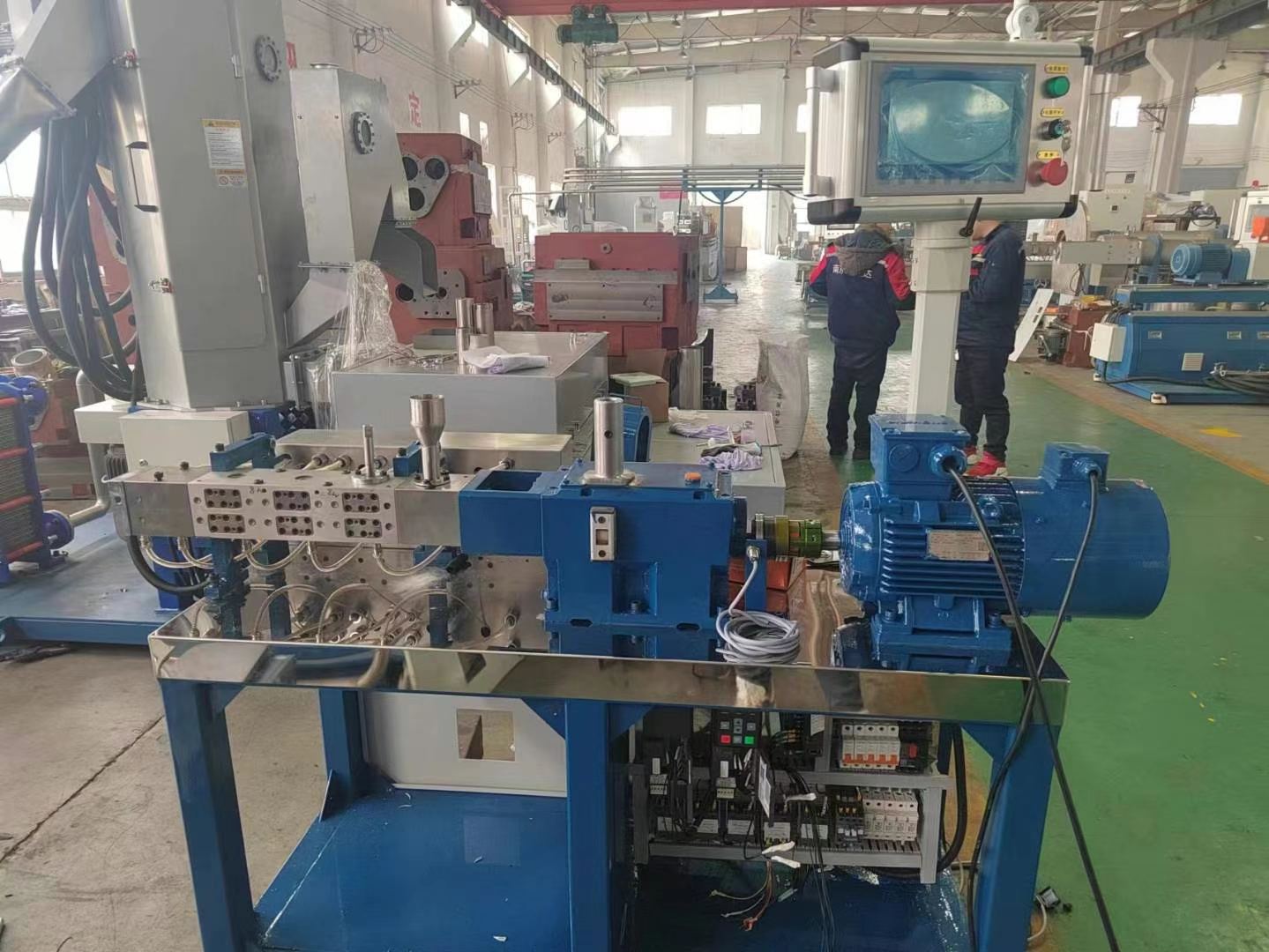

The LAB Series Laboratory Extruder is specially designed for research institutes, universities and factory laboratories.
It can also be used for small-batch production of special formulations.
Featuring a modular design, it is convenient and flexible, allowing configuration combinations to be adjusted according to different processing requirements.
The LAB series is built around a plug-and-play concept.
The extruder has a highly compact appearance while maintaining complete and comprehensive functionality.
Applications
The applications of our laboratory twin-screw extruder include mixing, direct extrusion, devolatilization and reactive extrusion.
They can be used for continuous extrusion processes of batch samples, new material research, new process development and small-batch production.
| Model | DIA (mm) | MAX (rpm) | L/D | MOTOR (kW) | CAPACITY (kg/hr) |
|---|---|---|---|---|---|
| Lab-20 | 22 | 720 | 32-64 | 7.5 | 5~20 |
| Lab-30 | 30 | 600 | 32-64 | 18.5 | 15~40 |
