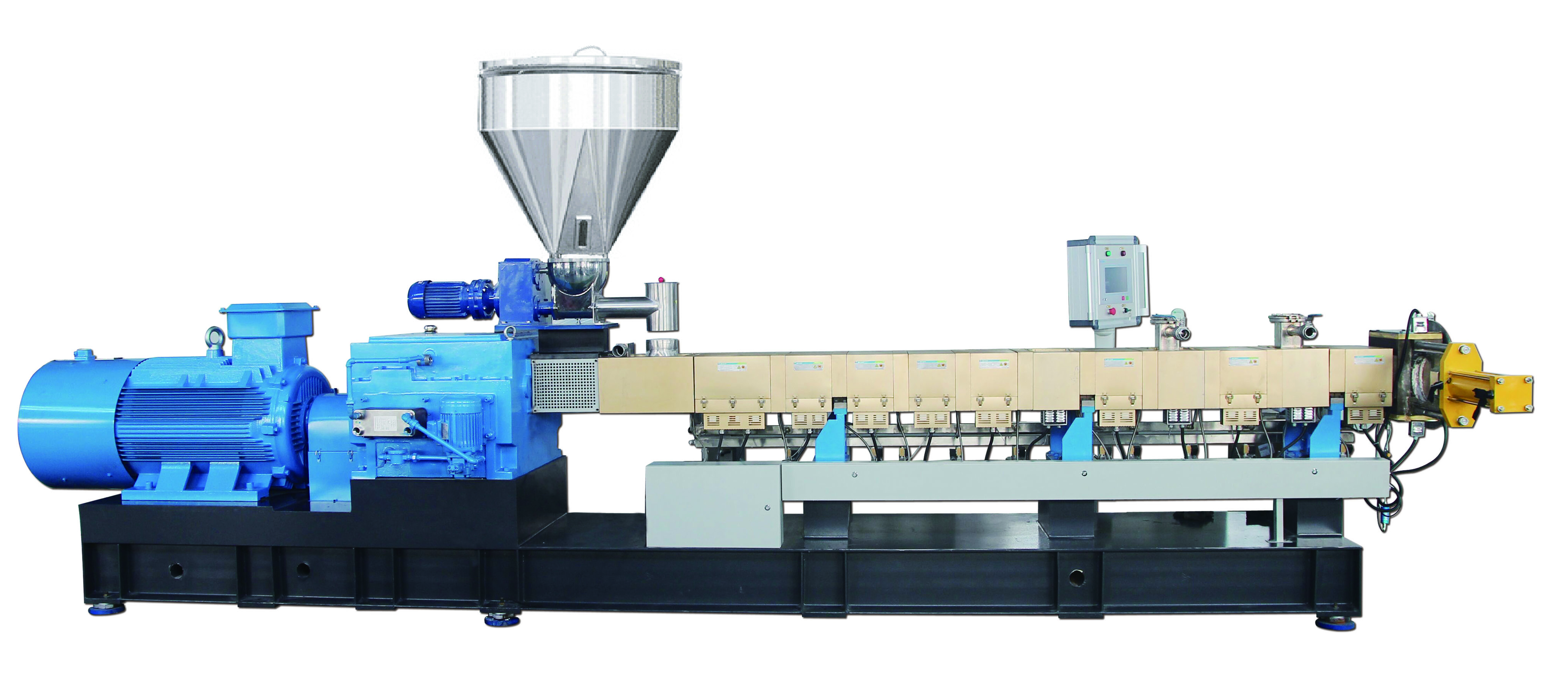

High Precision & High Torque Extruder

Model

RPM(r/min)

Power(kw)

Torque(N.M)

Torque Grade(T/A)

HTE-20

600-800

7.5-11

60-66

10.23-11.26

HTE-25

600-900

15-22

110-119

10.37-11.21

HTE-30

600-1000

22-37

175-196

9.96-11.17

HTE-35

300-900

18.5-60

286-318

10.6-11.79

HTE-40

300-900

30-90

477-537

11.63-13.08

HTE-50

300-900

55-160

787-895

10.63-12.08

HTE-52

300-900

55-160

787-895

9.9-11.26

HTE-65

300-900

110-315

1528-1751

10.86-12.45

HTE-75

300-900

160-500

2387-2685

11.05-12.43

HTE-85

300-900

220-650

3449-3979

11.06-12.78

HTE-95

300-900

350-1000

5173-5570

10.9-11.74

HTE-110

300-900

560-1400

7427-8913

10.18-12.22

HTE-125

300-800

800-2700

12730-16710

12.73-16.71

HTE-135

300-800

1000-3500

15916-20890

11.95-15.69

Main Features of twin screw extruder

- High Precision: The machining and control accuracy of gearboxes, barrels, shafts and screw elements all meet high standards, with zero tolerance achieved in key dimensions.



- High Self-Cleaning Performance: Specially designed screw flight profiles reduce material waste and yellowing. The machine features outstanding self-cleaning ability, so screw disassembly is generally not required for cleaning during production. Materials can be directly changed for extrusion, with only a small amount of transitional material needed to produce qualified products.



- High Conveying Capacity: Significantly reduces backflow and head pressure during material conveying, achieving higher conveying efficiency and increasing output by 10%–20%.



-The equipment features high precision, good stability and long service life, realizing performance that cannot be achieved by ordinary machine
