Product Introduce

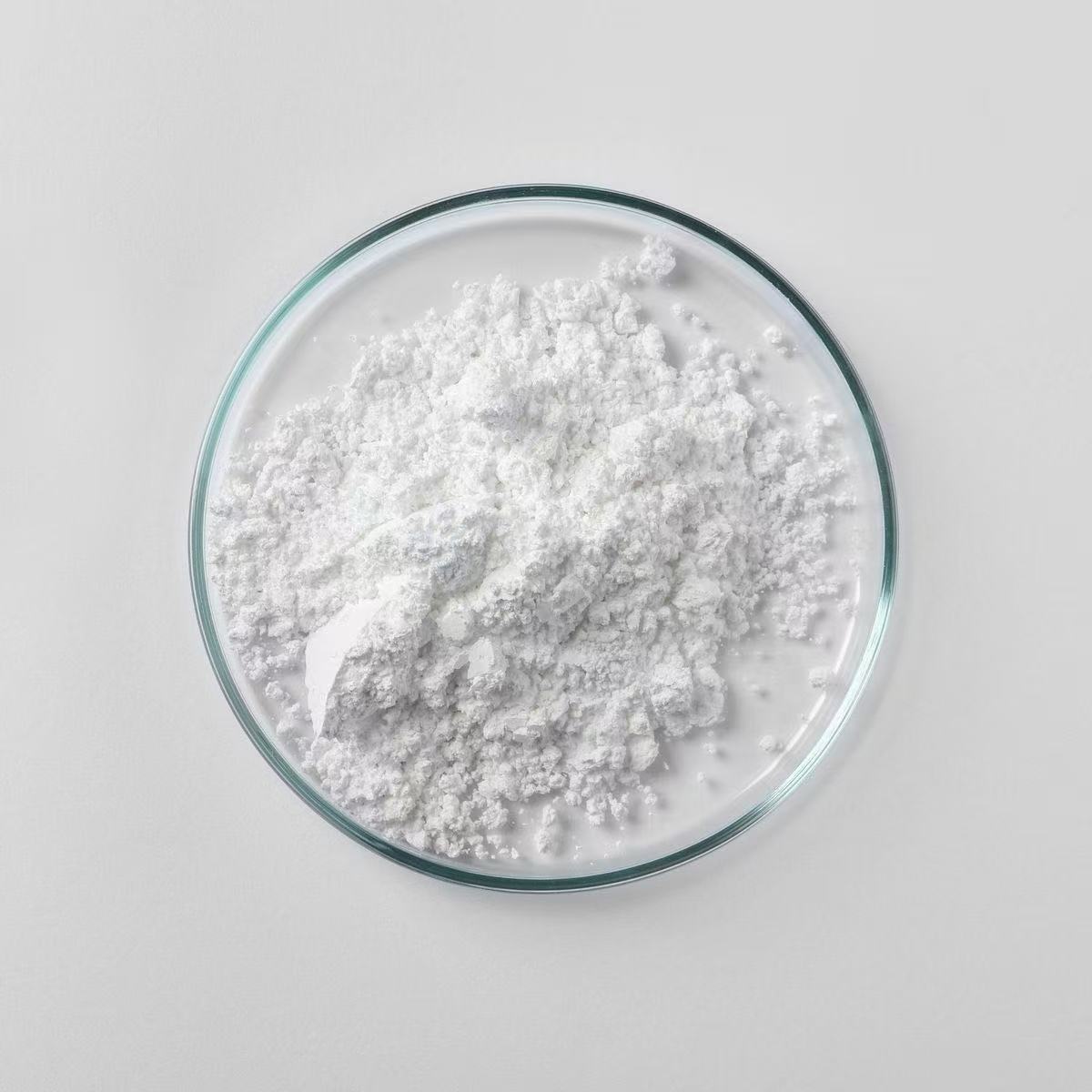

Titanium dioxide is an important inorganic chemical pigment,

with titanium dioxide as its main component.

Titanium dioxide has important applications in industries such as coatings, inks, papermaking,

plastics, rubber, chemical fibers, and ceramics, and has extended to fields including new energy materials,

environmental protection coatings, and biomedicine.

White masterbatch (titanium dioxide masterbatch) is a type of color masterbatch.

It is widely used in the plastic products industry, covering almost the entire sector,

such as various injection-molded products, films, sheets, pipes, building materials and other fields.

Machine Line Introduce

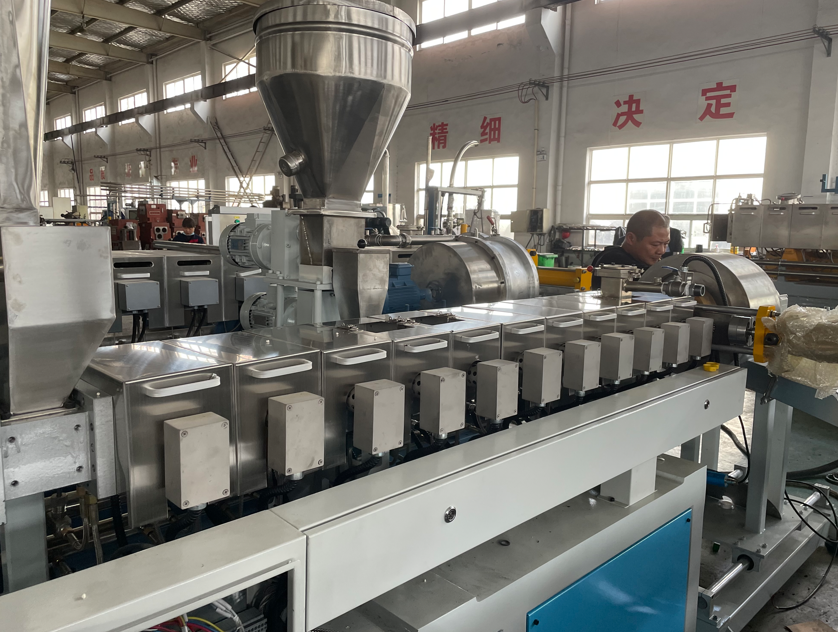

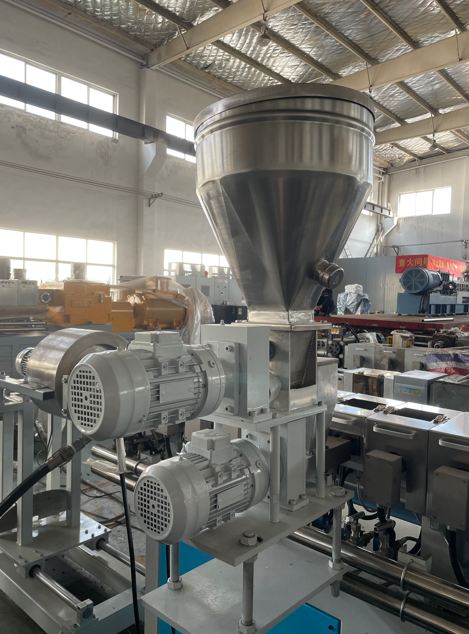

1.The company has launched a production process combining a twin-stage extruder with water ring granulation.

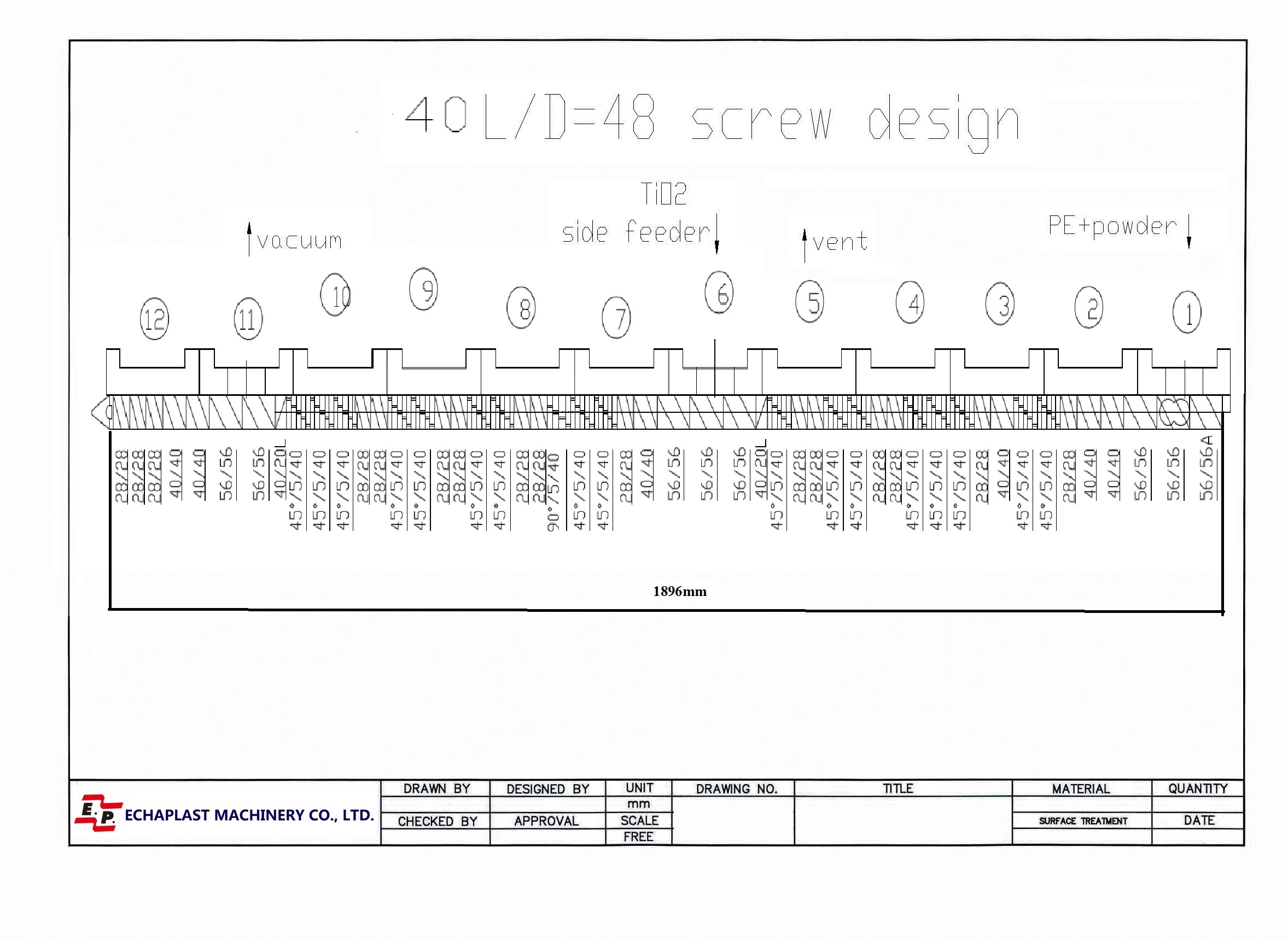

The upper stage adopts a twin-screw extruder, the lower stage uses a conical twin-screw extruder,

and the granulation method is water ring granulation.

This twin-stage granulation process has the following advantages:

2. The lower stage adopts a conical twin-screw extruder, which compacts cools the uniformly mixed melt and conveys it to the die for granulation.

3.The conical twin-screw extruder can withstand greater die pressure,

making the extruded particles denser and increasing extrusion output.

Dense particles reduce water absorption during granulation and improve surface gloss at the same time.

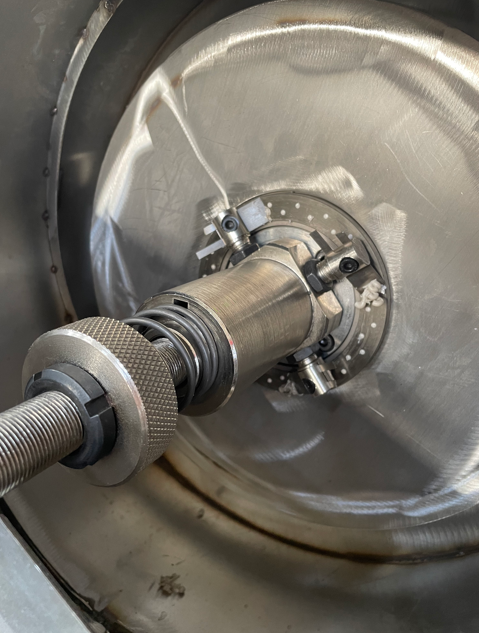

4.Water ring granulation is suitable for formulas with large differences in melt properties

masterbatches with different proportional contents such as titanium dioxide, calcium powder,

and fluorescent brighteners can be granulated smoothly.

On the other hand, the residence time of water ring granulation in water is short;

after passing through a dehydrator and vibrating screen,

the moisture content is less than 0.1%, requiring no additional drying.
